Current: Products> Medical Equipments > >Medical Oxygen Concentrator

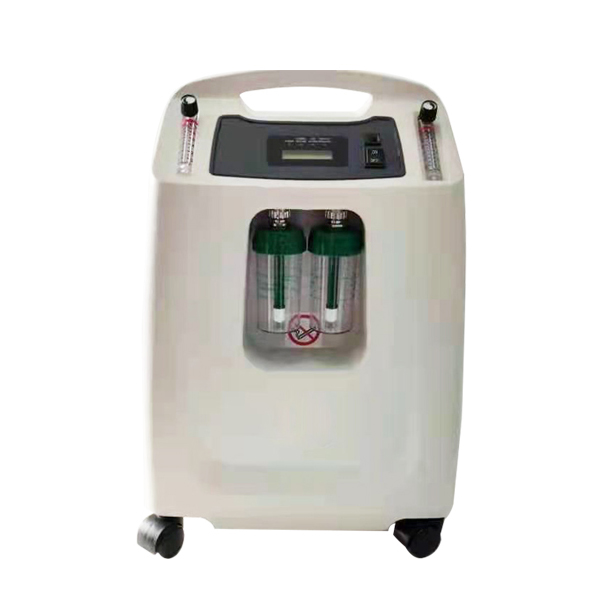

Medical Oxygen Concentrator
Quick Details
  • Model:
  • DO2-10AH
  • Product name
  • Portable oxygen concentrator
  • Purity
  • 93%±3%
  • Flow rate
  • 10 liter per minute ( 0-10L adjustable )
  • Output Pressure
  • 50-70 kPa
  • Power supply
  • AC 220V / 50Hz or 115V / 60Hz
  • Power consumption
  • 650VA
  • Noise
  • 55dB
  • Classification
  • Class Ⅱ, Type BF, Medical grade
  • Dimension
  • 430x320x620mm
  • Packing Size
  • 500x370x710mm
  • Net Weight
  • 20.1kgs
  • Gross Weight
  • 23.0kgs
  • Compressor
  • Germany imported pure copper oil free
  • Molecular Sieve
  • compressorZ12-07,USA imported
  • Filter
  • USA imported HEAP high efficiency filter
  • Alarm
  • Low oxygen, power failure, compressor failure, Low&high flow
  • Accessories
  • Nasal Cannula, humidifier bottle, Oxygen tube
  • Warranty
  • 1 year
  •
Packaging & Delivery
  • Packaging Details:
  • 500x370x710mm
  • Delivery Time:
  • Shipped in 7 days after payment
Product Description

DO2-10AH portable oxygen concentrator is a small oxygen generator using air as raw material, through pressure swing absorption ( PSA technology )  to directly separate  oxygen from nitrogen at normal temperature. High purity(≥93%) oxygen hereby produced.



Oxygen concentrators are the most reliable, efficient, and convenient source of supplemental oxygen available today, the oxygen concentrator is electrically operated. The unit separates oxygen from room air which allows high-purity supplemental oxygen to be delivered to you through the oxygen outlet, although the concentrator filters the oxygen in a room, it will not affect the normal amount of oxygen in your room.



Features:



1 .Oxygen cencentration display



2 .  Nebulizer optional



3 .  Durable sieve bed



4 .  Easy to maintain with modular design



5 .  Time accumulation



6 .  Audible and visual alarm:Low oxygen, power failure, compressor failure, Low&high flow





Increase pulse oxygen in blood

Medical grade, use both in hospital and household

CE/ISO13485 approved





Specifications DO2-10AH


Product name Portable oxygen concentrator
Purity 93%±3%
Flow rate 10 liter per minute ( 0-10L adjustable )
Output Pressure 50-70 kPa
Power supply AC 220V / 50Hz or 115V / 60Hz
Power consumption 650VA
Noise 55dB
Operation environment Temperature : 5℃- 40℃ Humidity≤80%  Atmospheric pressure : 86kPa-106kPA
Classification Class Ⅱ, Type BF, Medical grade
Dimension 430x320x620mm
Packing Size 500x370x710mm
Net Weight 20.1kgs
Gross Weight 23.0kgs
Compressor Germany imported pure copper oil free
Molecular Sieve compressorZ12-07,USA imported
Filter USA imported HEAP high efficiency filter
Alarm Low oxygen, power failure, compressor failure, Low&high flow
Accessories Nasal Cannula, humidifier bottle, Oxygen tube
Warranty 1 year

 Why Your Physician Prescribed Supplemental Oxygen

Today, many people suffer from heart, lung, and other respiratory diseases. Most of these people can be benefited from supplemental oxygen therapy. Your body requires a steady supply of oxygen to function properly. Your physician prescribed supplemental oxygen for you because you are not getting enough oxygen from room air alone. Supplemental oxygen will increase the amount of oxygen that your body receives. Supplemental oxygen is not addictive. Your physician prescribed a specific oxygen flow to improve symptoms such as headaches, drowsiness, confusion, fatigue, or increased irritability. If these symptoms persist after you begin your supplemental oxygen program, consult your physician.
