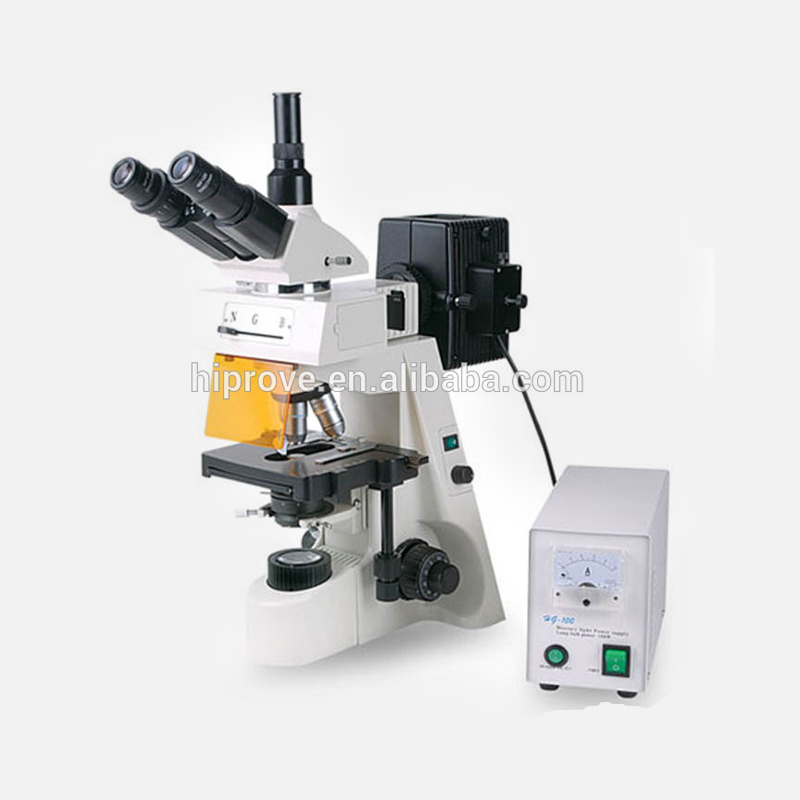

Model XYL-146Y Epi-fluorescent microscope is widely used in Biology, latrology, Immunology, Genetics, Material science, etc. It is usually outfitted with 2 wave bands ,B&G, and you can also proceed general transmission view at the same time . U&V. wave band is available for option.
High quality optical system and B&G. fluoroscope box bring you satisfactory fluorescent effect.
| Specification | Model | ||||
| XYL-146Y | XYL-146YT | XYL-146YA | XYL-146YAT | ||
| Viewing head | Compensation Free Binocular Head .Inclined at 30 ° |
Y | |||
| Compensation Free Trinocular Head .Inclined at 30 ° |
Y | ||||
| Sliding Binocular Head .Inclined at 45 ° | Y | ||||
| Sliding Trinocular Head .Inclined at45 ° | Y | ||||
| Eyepiece | WF10X/ 18mm | Y | Y | ||
| WF10X/ 22mm | Y | Y | |||
| Objective | 195fluorescent objective:4X,10X,40X(S),100X (S) 0il |
Y | Y | ||
| Infinity fluorescent objective: 4X,10X,40X(S),100X (S) 0il |
Y | Y | |||
| 20X,60X(S) objective | N | N | N | N | |
| Stage | Double layers mechanical stage | Y | Y | Y | Y |
| Stage size:180mmX 150mm | |||||
| Moving range :75mmX 50mm | |||||
| Fluoroscope box | B ,G Wave band | Y | Y | Y | Y |
| U,V Wave band | N | N | N | N | |
| Focusing | Coaxial coarse & fine focusing adjustment with rack and pinion mechanism Fine focusing scale Value 0.002mm |
Y | Y | Y | Y |
| Condenser | N. A.1.25 Abbe condenser with iris diaphragm&filter |
Y | Y | Y | Y |
| Optional Accessory | 1.3 or 3.0 Mega pixels CMOS electronic eyepiece | ||||
| Photography attachment | |||||
Mark” Y ”standard outfit. Mark:” N ”optional parts.
