Product Description:
CE, ISO Certificate

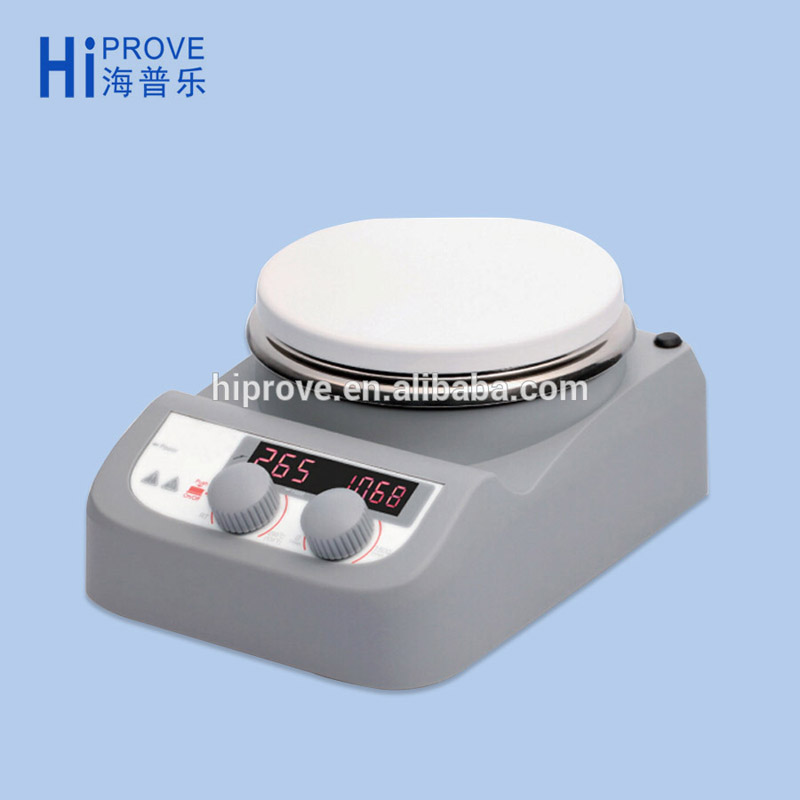

This is a perfect device for handling small volume task on daily application, as a low temperature magnetic stirrer with Max. temperature at 280℃.
Feature:
1: Digital temperature control with Max. temperature to 280℃
2: Digital speed control with Max. speed up to 1500rpm
3: Stainless steel work plate with ceramic coating provides good chemical-resistant performance

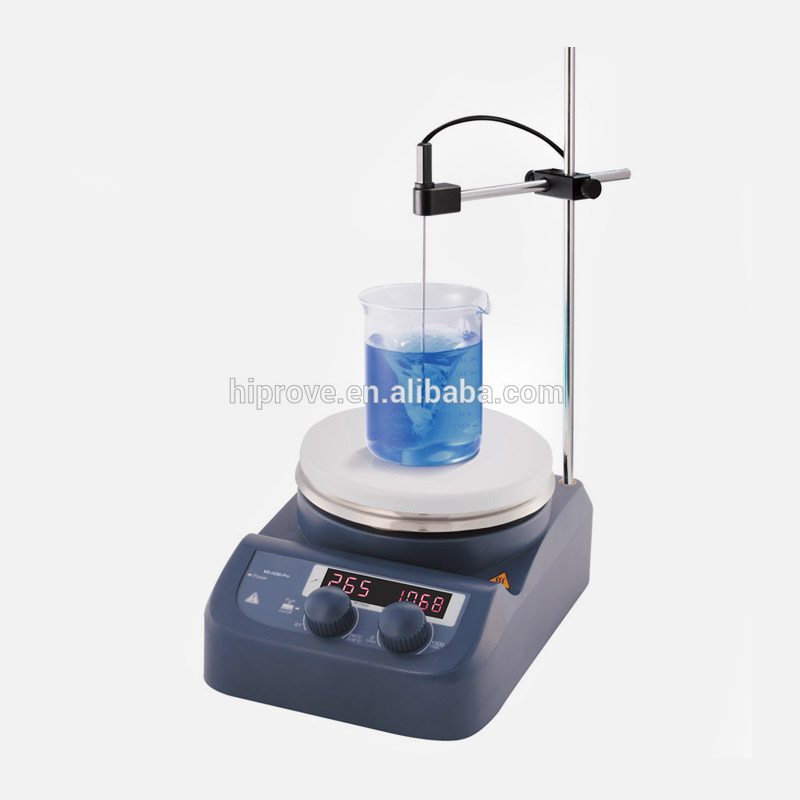

4: External temperature control is possible by connecting the temperature sensor (PT 1000) with an accuracy at ±0.5℃

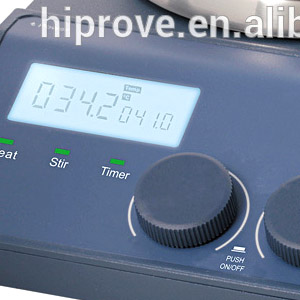

5. LED display shows temperature and speed
6. The “HOT” warning will flash when the work plate temperature is above 50℃ even if the hotplate is turned off
Specification:
| Specification | MS-H280-PRO |
| Work Plate dimensions | Φ135mm(5 inch) |
| Work plate material | Stainless steel cover with ceramic |
| Motor Type | DC motor |
| Motor rating input | 5W |
| Motor rating output | 3W |
| Power | 515W |
| Heating output | 500W |
| Voltage | 100-120/200-240V 50/60Hz |
| Stirring positions | 1 |
| Max. Stirring quantity (H2O) | 3L |
| Max. magnetic bar (length) | 50mm |
| Speed range | 100-1500rpm |
| Speed display | LED |
| Temperature display | LED |
| Speed display resolution | ±1rpm |
| Heating temperature range | Room temp. -280℃ increment 1℃ |
| Control accuracy of work plate | ±1℃(<100℃) ±1%(>100℃) |
| Over temperature protection | 320℃ |
| Temperature display accuracy | ±1℃ |
| External temperature sensor | PT1000 (accuracy±0.5℃) |
| “Hot” warning | 50℃ |
| Protection class | IP21 |
| Dimension (W x D x H) | 150*260*85mm |
| Weight | 1.8 kg |
| Permissible ambient temperature and humidity | 5-40℃ 80% |
