APX Series Operation Microscopes using fibre-optic cable for coaxial illumination, have different working distance and magnification. They are featured for flexible handling and easy operation. They can be sued for micro-operation in ear-nose-throat, dental, ophthalmology, gynecology and surgery.

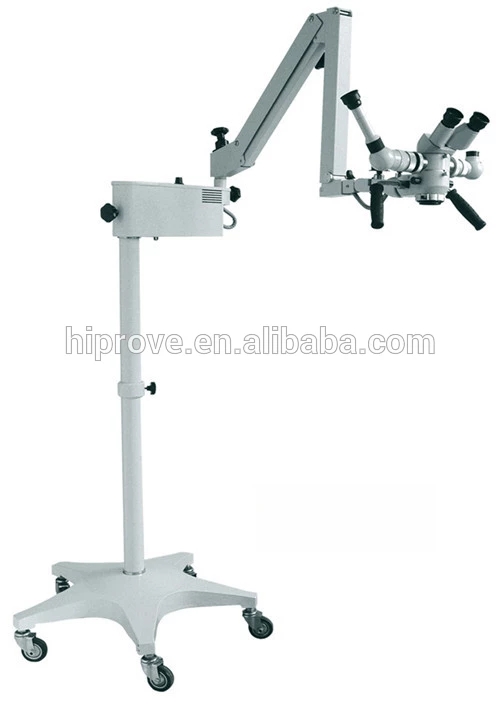

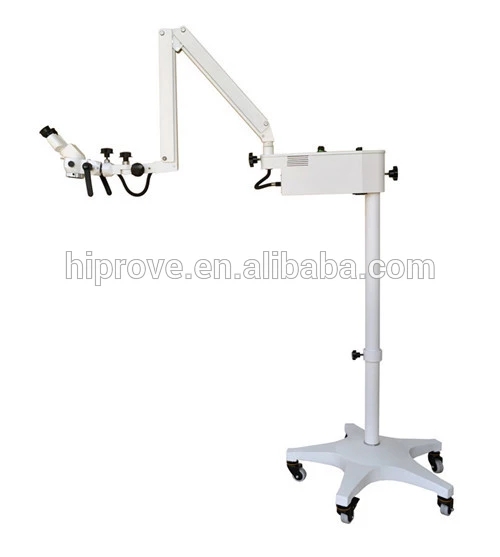

APX101 Microscope
Observation angle: Straight
Magnification of observation: 6X
Interpupillary distance: 50mm-80mm
Diopter: ±5D
Focal length of objective: F=200mm and F=300mm two objectives
Magnification changer: 3-step: 0.6X, 1X, 1.6X
Total Magnification: 3X-12X
Linear field: 60.8-15.8mm
Fine focusing distance: 10mm
Illumination: Coaxial illumination with cold light source fiber-optic cable, brightness adjustable
Lamp: 21V150W halogen lamp
Filter: Build-in green and yellow filter
With 2-part arm and floor stand
Power supply: AC220V50HZ/AC110V60HZ
Optional accessories: Objective F=250mm & F=400mm

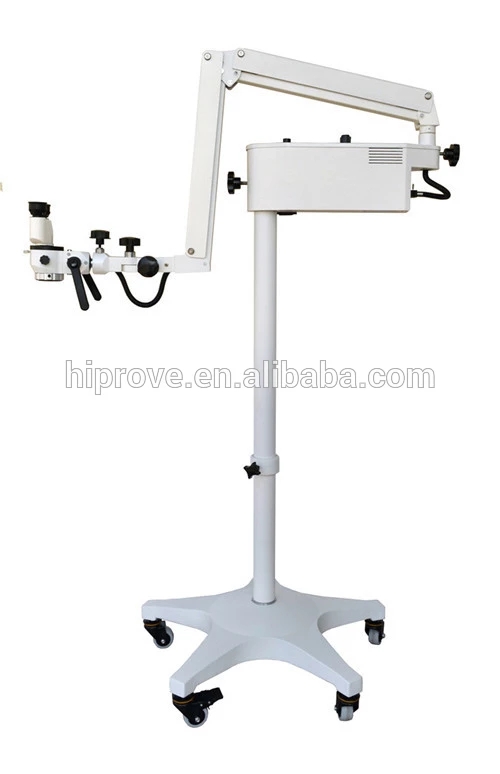

APX102 Microscope
Observation angle: 45°tilted
Magnification of observation: 6X
Interpupillary distance: 50mm-80mm
Diopter: ±5D
Focal length of objective: F=200mm and F=300mm two objectives
Magnification changer: 3-step: 0.6X, 1X, 1.6X
Total Magnification: 3X-12X
Linear field: 60.8-15.8mm
Fine focusing distance: 10mm
Illumination: Coaxial illumination with cold light source fiber-optic cable, brightness adjustable
Lamp: 21V150W halogen lamp
Filter: Build-in green and yellow filter
With 2-part arm and floor stand
Power supply: AC220V50HZ/AC110V60HZ
Optional accessories: Objective F=250mm & F=400mm

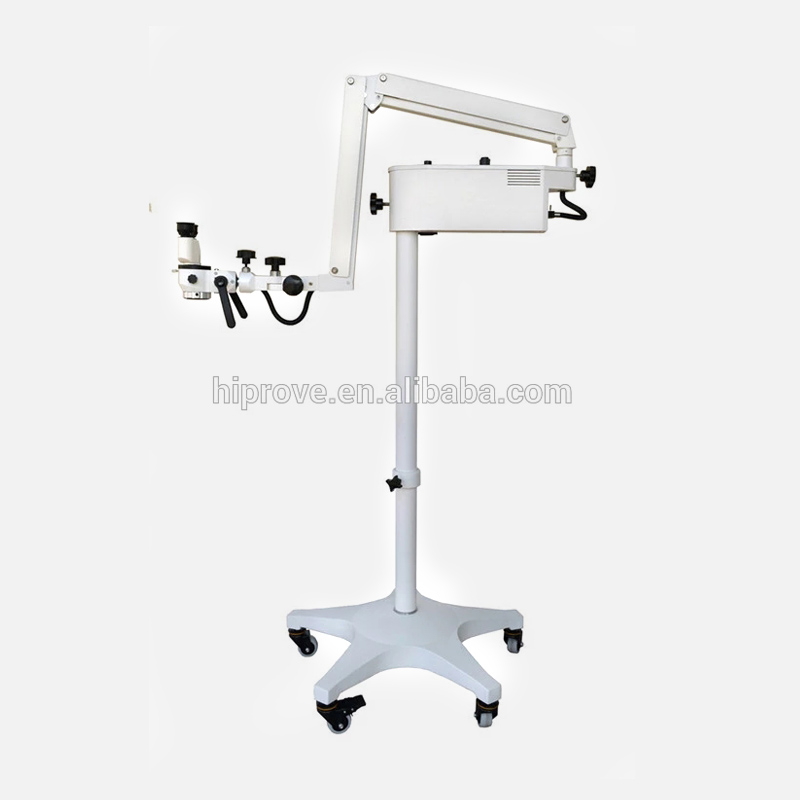

APX103 Microscope
Observation angle: Straight
Magnification of observation: 6X
Interpupillary distance: 50mm-80mm
Diopter: ±5D
Focal length of objective: F=200mm and F=300mm two objectives
Magnification changer: 3-step: 0.6X, 1X, 1.6X
Total Magnification: 3X-12X
Linear field: 60.8-15.8mm
Fine focusing distance: 10mm
Illumination: Coaxial illumination with cold light source fiber-optic cable, brightness adjustable
Lamp: 21V150W halogen lamp
Filter: Build-in green and yellow filter

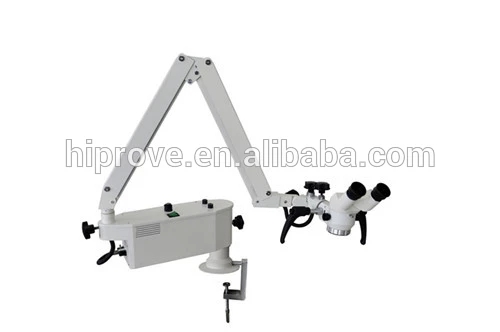

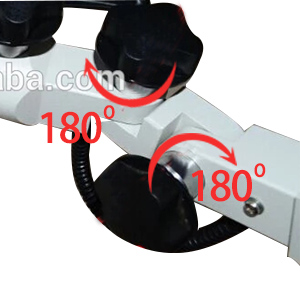

With 2-part arm and table clamp
Power supply: AC220V50HZ/AC110V60HZ
Optional accessories: Objective F=250mm & F=400mm

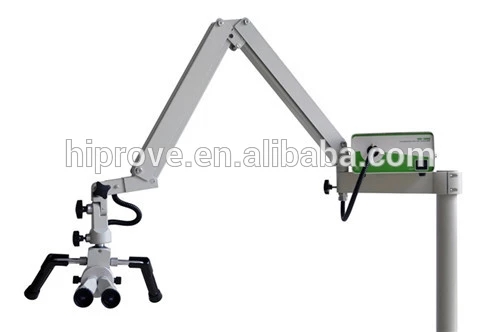

APX103Z Microscope
Observation angle: Straight
Magnification of observation: 6X
Interpupillary distance: 50mm-80mm
Diopter: ±5D
Focal length of objective: F=200mm and F=300mm two objectives
Magnification changer: 3-step: 0.6X, 1X, 1.6X
Total Magnification: 3X-12X
Linear field: 60.8-15.8mm
Fine focusing distance: 10mm
Illumination: Coaxial illumination with cold light source fiber-optic cable
Lamp: 50W Xenon lamp
Filter: Green and yellow filter
With 2-part arm and column connecting cross arm (customize according to the column of ENT unit)
Power supply: AC220V50HZ/AC110V60HZ
Optional accessories: Objective F=250mm & F=400mm

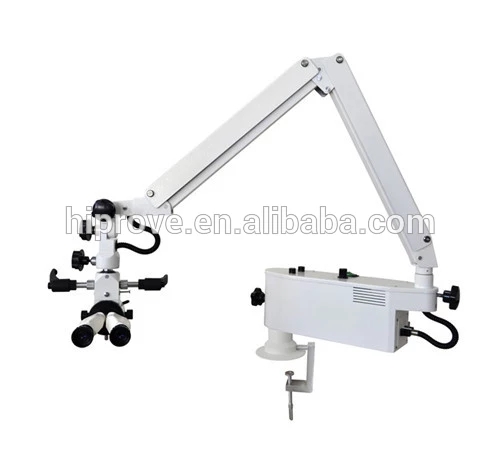

APX104 Microscope
Observation angle: 45°tilted
Magnification of observation: 6X
Interpupillary distance: 50mm-80mm
Diopter: ±5D
Focal length of objective: F=200mm and F=300mm two objectives
Magnification changer: 3-step: 0.6X, 1X, 1.6X
Total Magnification: 3X-12X
Linear field: 60.8-15.8mm
Fine focusing distance: 10mm
Illumination: Coaxial illumination with cold light source fiber-optic cable, brightness adjustable
Lamp: 21V150W halogen lamp
Filter: Build-in green and yellow filter
With 2-part arm and table clamp
Power supply: AC220V50HZ/AC110V60HZ
Optional accessories: Objective F=250mm & F=400mm

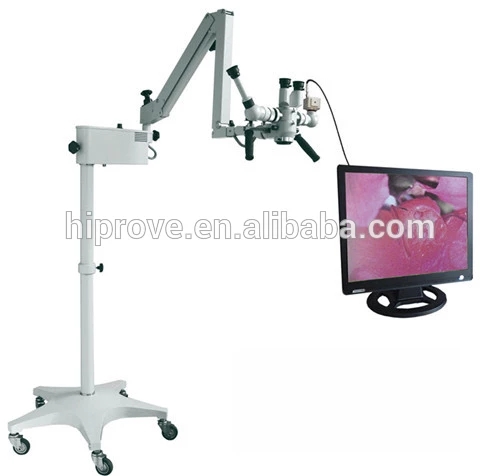

APX120 Microscope
Observation angle: Straight
Magnification of observation: 6X
Interpupillary distance: 50mm-80mm
Diopter: ±5D
Focal length of objective: F=200mm and F=300mm two objectives
Magnification changer: 3-step: 0.6X, 1X, 1.6X
Total Magnification: 3X-12X
Linear field: 60.8-15.8mm
Fine focusing distance: 10mm
Illumination: Coaxial illumination with cold light source fiber-optic cable, brightness adjustable
Lamp: 21V150W halogen lamp
Filter: Build-in green and yellow filter
With beamsplitter andTV adapter, C-mount 1/3 inch CCD camera attachable
With 2-part arm, counterweight adjustable and can be locked
With floor stand.
Power supply: AC220V50HZ/AC110V60HZ
Optional accessories: Demonstrator, Camera , Photo adapter, Monitor H1766, Objective F=250mm & F=400mm

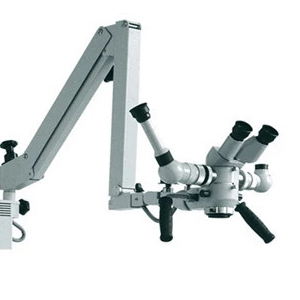

APX130 Microscope
Observation angle: 45°tilted
Magnification of observation: 6X
Interpupillary distance: 50mm-80mm
Diopter: ±5D
Focal length of objective: F=200mm and F=300mm two objectives
Magnification changer: 3-step: 0.6X, 1X, 1.6X
Total Magnification: 3X-12X
Linear field: 60.8-15.8mm
Fine focusing distance: 10mm
Illumination: Coaxial illumination with cold light source fiber-optic cable, brightness adjustable
Lamp: 21V150W halogen lamp
Filter: Build-in green and yellow filter
With beamsplitter andTV adapter, C-mount 1/3 inch CCD camera attachable
With 2-part arm, counterweight adjustable and can be locked
With floor stand.
Power supply: AC220V50HZ/AC110V60HZ
Optional accessories: Demonstrator, Camera , Photo adapter, Monitor H1766, Objective F=250mm & F=400mm
| Table of Specification for APX Series Operation Microscope: | ||||||
| Item | APX101 | APX102 | APX103 | YXS104 | APX120 | APX130 |
| Binocular observation | Straight | 45º Tilted | Straight | 45º Tilted | Straight | 45º Tilted |
| Magnification of Observation | 6X | |||||
| Interpupillary distance | 50mm-80mm | |||||
| Diopter | ±5D | |||||
| Magnification changer | 3-step magnification change: 0.6X,1X,1.6X | |||||
| Focal length of objective | two objectives: F=200 & F=300mm. Connecting screw: M45x0.75 | |||||
| Total magnification | 3X-12X | |||||
| Linear field | 60.8-15.8mm | |||||
| Beamsplitter | No | 50:50 Beamsplitter | ||||
| TV adapter | C-mount 1/3 inch CCD camera attachable | |||||
| Fine focusing range | 10mm | |||||
| Filter | Built-in green and yellow filters | |||||
| Balancing arm | 2-part arm | 2-part arm, counterweight adjustable | ||||
| Illumination system | Coaxial illumination with cold light source fiber-optic cable, 21V150W halogen lamp, brightness adjustable | |||||
| Fiber-optic cable | 1600mm | 1700mm | ||||
| Stand | 2-part column fitted on the five-star base | Table mount | 2-part column fitted on the five-star base | |||
| Optional accessories | Demonstrator, Camera ,Photo adapter, Monitor H1766, Objective F=250mm & F=400mm | |||||
| Table of Optical Characteristics for APX Series Operation Microscope: | ||||||||||||
| Focal length of objective | F=200mm | F=250mm(optional) | F=300mm | F=400mm(optional) | ||||||||
| Magnification on handwheel | 1.6X | 1X | 0.6X | 1.6X | 1X | 0.6X | 1.6X | 1X | 0.6X | 1.6X | 1X | 0.6X |
| Total magnification | 12X | 7.5X | 4.7X | 9.6X | 6X | 3.7X | 8X | 5X | 3X | 6X | 3.8X | 2.3X |
| Linear field (mm) | 15.8 | 25.3 | 40.6 | 19.7 | 31.6 | 50.7 | 23.6 | 37.9 | 60.8 | 31.5 | 50.5 | 81 |
| Exit pupil diameter (mm) | 1.04 | 1.66 | 1.04 | 1.66 | 1.04 | 1.66 | 1.04 | 1.66 | ||||
| Exit pupil distance (mm) | 15.3 | |||||||||||
| Resolution (LP/mm) | 67 | 44.5 | 29.7 | 60 | 35.4 | 27 | 47.2 | 31.5 | 23.6 | 35 | 27 | 19.8 |
