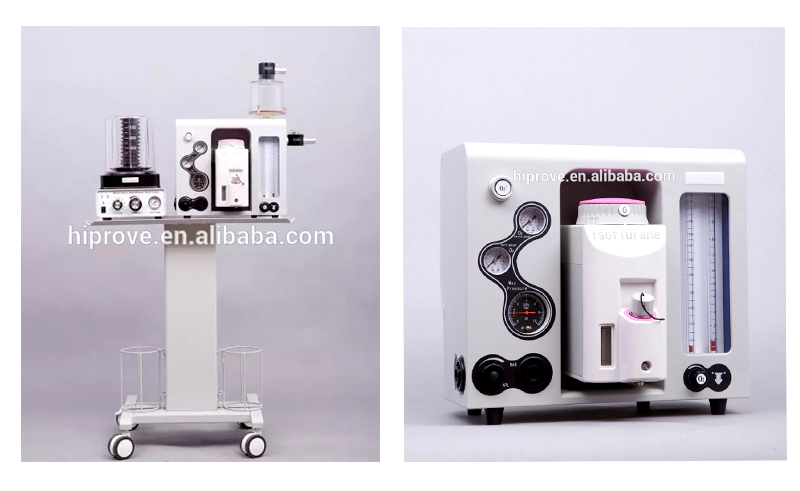

CE Certificated
Module rack with polyester medical material, high strength and light weight.
Superior thin spray technology, delicate color, beautiful and durable.
High precious vaporizer, halothane, enflurane, isofurane and sevoflurane could be choosed freely.

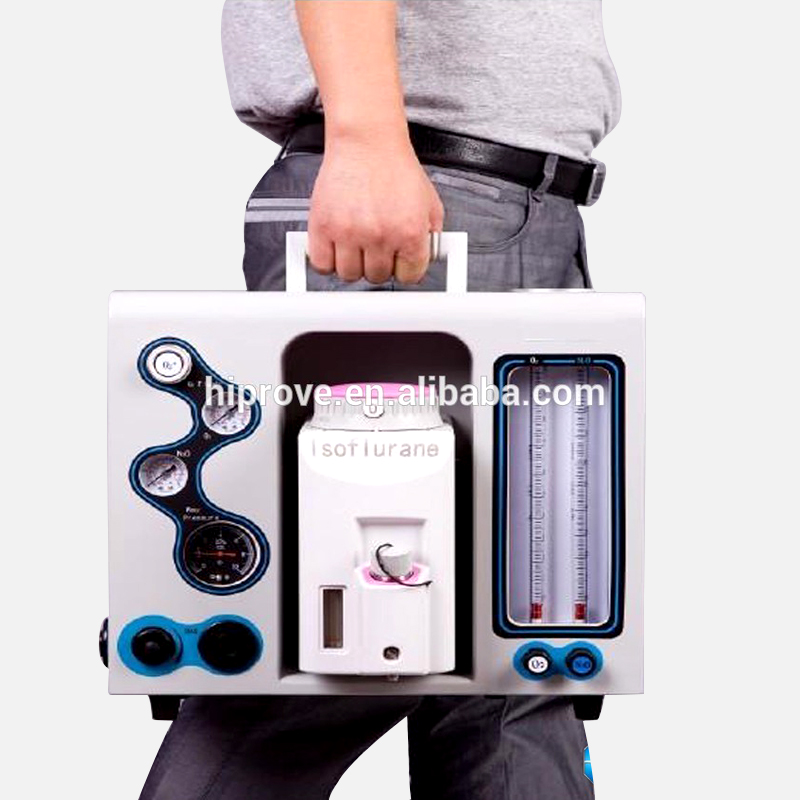

Main unit are only 2kg (W/O vaporizer), light weight and easy to move.
With a dedicated handle, could move by hand-pull.
Two gas source: O2

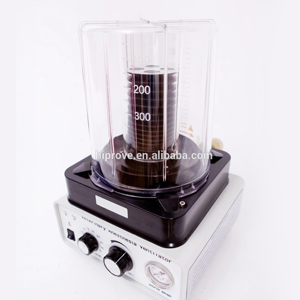

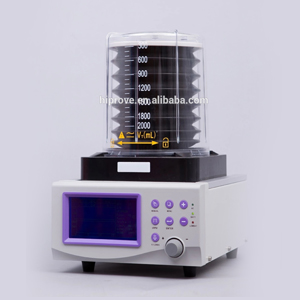

Ventilator(option): TH-1B
Technical Specification:
|
Ventilation Method: |
Closed, Semi-closed, Semi-open |
|
Application |
2-100kg animal |
|
Gas Source |
O2, 0.25mpa-0.65mpa |
|
Two-tube (O2) |
Scope, 0-10L/min. With linkage device, O2 concentration not low than 25%. |
|
O2 flush |
More than 25L/min |
|
Respiratory mode |
Manual, Oxygen |
|
TV (Tidal volume) |
50-2000ml |
|
I:E |
According to the doctor operation |
|
BPM |
According to the doctor operation |
|
APL valve pressure |
0.5-6Kpa |
|
Monitoring |
Airway pressure, respiratory mode |
|
Three Gauges |
Two for O2, one for airway pressure. |
Series Vaporizer Available :
Enflurane, Isoflurane, Halothane, Sevoflurane.

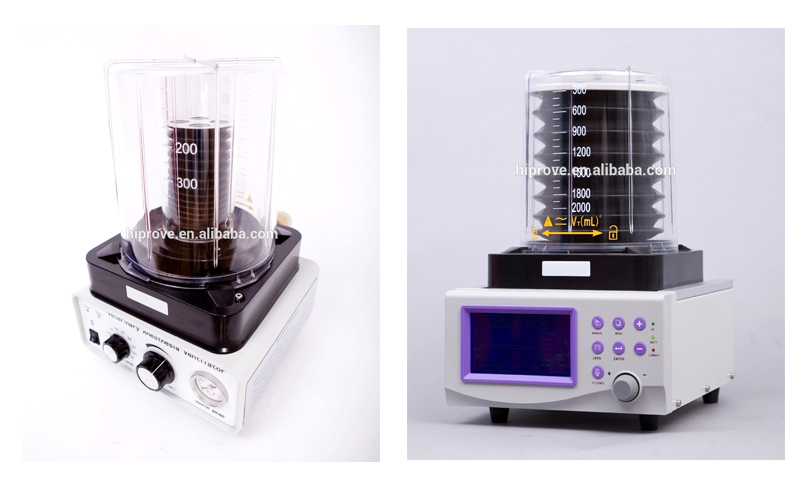

Ventilator (Optional):
