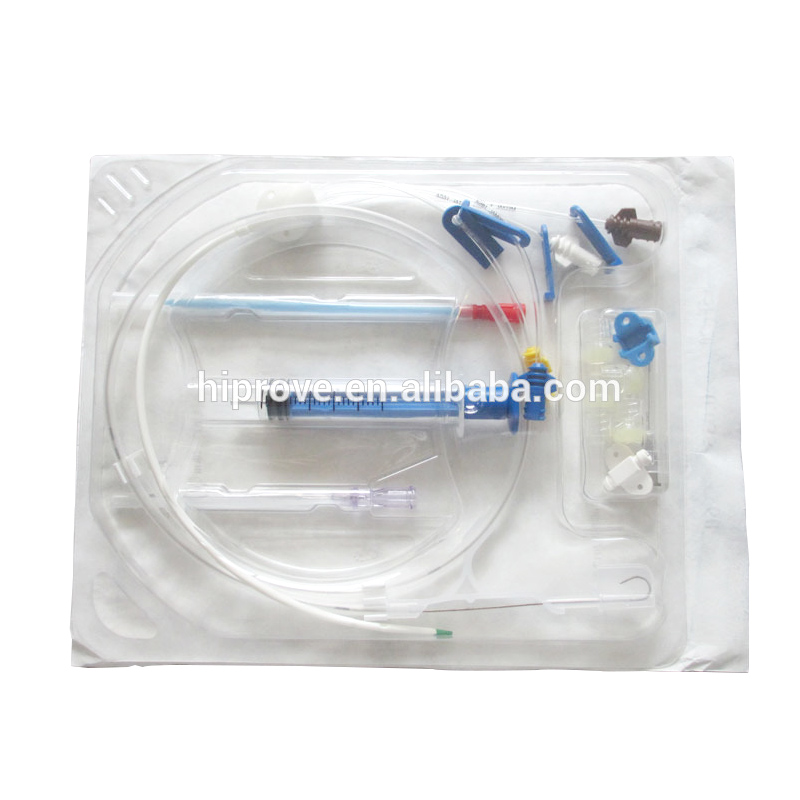

Product Description:



1: By establishing a convenient and safe central venous channel.

2: Our CVC is widely applied in clinical emergency rescue, intensive care, drug administration during chemical treatment and surgeon, blood infusion, parenteral nutrition and monitor of central venous pressure with blood pressure transducer.

3: The connector employs proprietary design, which makes the connector smooth and firm, effectively preventing infection, leakage and shedding.

4: Special models for dialysis use and peripheral inserted central catheter.

Product Specification:

Quad Lumen

Size: 8.5F

Length: 5/8/10/13/16/20/25/30 CM

Other Lumen as follows:



Item   Number	Specification	Lumen Size	Catheter   Length (CM)
AP1-14-15	Single-lumen   14G	14G	15
AP1-14-20	Single-lumen   14G	14G	20
AP1-14-30	Single-lumen   14G	14G	30
AP1-16-15	Single-lumen   16G	16G	15
AP1-16-20	Single-lumen   16G	16G	20
AP1-16-30	Single-lumen   16G	16G	30
AP1-18-15	Single-lumen   18G	18G	15
AP1-18-20	Single-lumen   18G	18G	20
AP1-18-30	Single-lumen   18G	18G	30
AP1-20-13	Single-lumen   20G)	20G	13
AP1-20-20	Single-lumen   20G	20G	20
AP2-40-05	Double-lumen   4Fr	4F	5
AP2-40-08	Double-lumen   4Fr	4F	8
AP2-40-13	Double-lumen   4Fr	4F	13
AP2-50-08	Double-lumen   5Fr	5F	8
AP2-50-13	Double-lumen   5Fr	5F	13
AP2-50-20	Double-lumen   5Fr	5F	20
AP2-70-15	Double-lumen   7Fr	7F	15
AP2-70-20	Double-lumen   7Fr	7F	20
AP2-70-30	Double-lumen   7Fr	7F	30
AP2-70-50	Double-lumen   7Fr	7F	50
AP3-55-08	Triple-lumen   5.5Fr	5.5F	8
AP3-55-13	Triple-lumen   5.5Fr	5.5F	13
AP3-70-15	Triple-lumen   7Fr	7F	15
AP3-70-20	Triple-lumen   7Fr	7F	20
AP3-70-30	Triple-lumen   7Fr	7F	30
AP4-85-20	Quad lumen  8.5Fr	8.5Fr	20
